本文采用一个Demo来展示Android中ExpandableListView控件的使用，如如何在组/子ListView中绑定数据源。直接上代码如下：



程序结构图：





layout目录下的main.xml 文件源码如下：





<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:orientation="vertical"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent">

    <!-- 我们会自己定义listview的显示方式（在另外一个布局文件里边）不用默认的方式

         如果自定义listview的显示方式这里这个android:id="@id/android:list" 必须这样写-->

    <!-- android:drawSelectOnTop="false"此属性用来设置listview上的背景颜色会不会

     挡住（覆盖）内容, 如果这是为false就表示不会覆盖掉-->

    <ExpandableListView

        android:id="@id/android:list"

        android:layout_width="fill_parent"

        android:layout_height="wrap_content"

        android:layout_weight="1"

        android:drawSelectorOnTop="false"/>

</LinearLayout>



包com.andyidea.demo中ContactsActivity.java源码如下：





package com.andyidea.demo;



import java.util.ArrayList;

import java.util.List;



import android.app.ExpandableListActivity;

import android.os.Bundle;

import android.view.Gravity;

import android.view.View;

import android.view.ViewGroup;

import android.view.Window;

import android.widget.AbsListView;

import android.widget.BaseExpandableListAdapter;

import android.widget.TextView;



public class ContactsActivity extends ExpandableListActivity {



    List<String> group;           //组列表

    List<List<String>> child;     //子列表

    ContactsInfoAdapter adapter;  //数据适配器



    /** Called when the activity is first created. */

    @Override

    public void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        requestWindowFeature(Window.FEATURE_NO_TITLE);  //设置为无标题

        setContentView(R.layout.main);

        getExpandableListView().setBackgroundResource(R.drawable.default_bg);



        initializeData();

        getExpandableListView().setAdapter(new ContactsInfoAdapter());

        getExpandableListView().setCacheColorHint(0);  //设置拖动列表的时候防止出现黑色背景

    }



    /**

     * 初始化组、子列表数据

     */

    private void initializeData(){

        group = new ArrayList<String>();

        child = new ArrayList<List<String>>();



        addInfo("Andy",new String[]{"male","138123***","GuangZhou"});

        addInfo("Fairy",new String[]{"female","138123***","GuangZhou"});

        addInfo("Jerry",new String[]{"male","138123***","ShenZhen"});

        addInfo("Tom",new String[]{"female","138123***","ShangHai"});

        addInfo("Bill",new String[]{"male","138231***","ZhanJiang"});



    }



    /**

     * 模拟给组、子列表添加数据

     * @param g-group

     * @param c-child

     */

    private void addInfo(String g,String[] c){

        group.add(g);

        List<String> childitem = new ArrayList<String>();

        for(int i=0;i<c.length;i++){

            childitem.add(c[i]);

        }

        child.add(childitem);

    }



    class ContactsInfoAdapter extends BaseExpandableListAdapter{





        //-----------------Child----------------//

        @Override

        public Object getChild(int groupPosition, int childPosition) {

            return child.get(groupPosition).get(childPosition);

        }



        @Override

        public long getChildId(int groupPosition, int childPosition) {

            return childPosition;

        }



        @Override

        public int getChildrenCount(int groupPosition) {

            return child.get(groupPosition).size();

        }



        @Override

        public View getChildView(int groupPosition, int childPosition,

                boolean isLastChild, View convertView, ViewGroup parent) {

            String string = child.get(groupPosition).get(childPosition);

            return getGenericView(string);

        }



        //----------------Group----------------//

        @Override

        public Object getGroup(int groupPosition) {

            return group.get(groupPosition);

        }



        @Override

        public long getGroupId(int groupPosition) {

            return groupPosition;

        }



        @Override

        public int getGroupCount() {

            return group.size();

        }



        @Override

        public View getGroupView(int groupPosition, boolean isExpanded,

                View convertView, ViewGroup parent) {

            String string = group.get(groupPosition);

            return getGenericView(string);

        }



        //创建组/子视图

        public TextView getGenericView(String s) {

            // Layout parameters for the ExpandableListView

            AbsListView.LayoutParams lp = new AbsListView.LayoutParams(

                    ViewGroup.LayoutParams.FILL_PARENT, 40);



            TextView text = new TextView(ContactsActivity.this);

            text.setLayoutParams(lp);

            // Center the text vertically

            text.setGravity(Gravity.CENTER_VERTICAL | Gravity.LEFT);

            // Set the text starting position

            text.setPadding(36, 0, 0, 0);



            text.setText(s);

            return text;

        }





        @Override

        public boolean hasStableIds() {

            // TODO Auto-generated method stub

            return false;

        }



        @Override

        public boolean isChildSelectable(int groupPosition, int childPosition) {

            // TODO Auto-generated method stub

            return true;

        }



    }

}

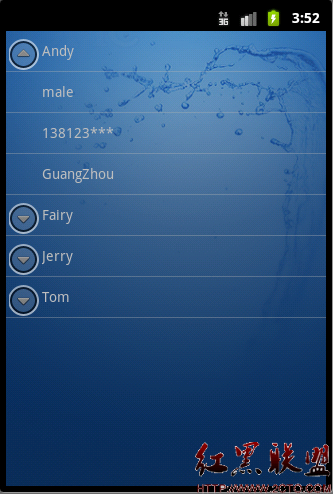

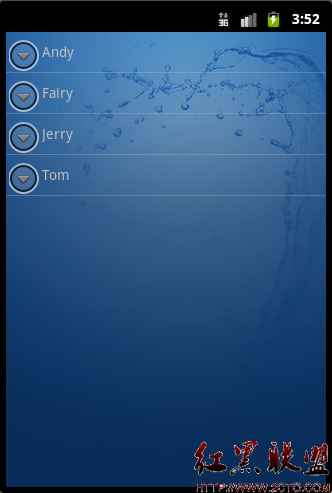

最后，程序运行后截图如下：





摘自：Android-Idea
